With the rapid growth in demand for e-commerce logistics, electronic products, and industrial packaging, bubble wrap, as a crucial cushioning material, directly impacts a company's delivery capabilities and cost control through efficient production. Against this backdrop, automatic bubble film machines are increasingly becoming essential equipment for industry upgrades. Through automated control, high-speed production, and stable finished product quality, these machines not only increase capacity but also significantly optimize production processes.
Boosting Output with High-Speed Automatic Bubble Film Machine
Production efficiency is most directly reflected in output per unit time. Traditional semi-automatic or manual bubble film production methods are often limited by the speed and instability of manual operation, while a modern automatic bubble film machine completely changes this situation.
First, the application of high-speed extrusion technology is the core guarantee of output. During the operation of the air bubble film machine, the main extruder, through its efficient screw design, ensures that the raw materials melt uniformly at high temperatures and pass through the die quickly.
The extrusion system of the multi-layer composite production line is specially optimized to achieve a continuous production speed of tens or even hundreds of meters per minute while maintaining high pressure. This high-density output capacity means that the daily output of one automatic bubble film machine is equivalent to the total output of several traditional production lines.
Second, the fully automated winding and cutting system significantly reduces downtime. Winding is a crucial step in the operation of the air bubble film machine. Advanced automatic bubble film machines are equipped with dual- or multi-station automatic rewinding machines. When a roll of bubble film reaches the preset length, the machine automatically switches to the next station and completes automatic cutting and adhesive application. This process requires no manual intervention, truly achieving "non-stop roll changing."
Furthermore, the integrated PLC control system enables one-button start-up and parameter preset for the entire air bubble film machine production line. Operators only need to input the required film width, thickness, and bubble specifications on the touchscreen, and the automatic bubble film machine will automatically adjust the motor speed, traction speed, and temperature compensation according to the settings. This digital management mode eliminates the time wasted on repeated manual adjustments, ensuring that the time from production line start-up to stable output is minimized.

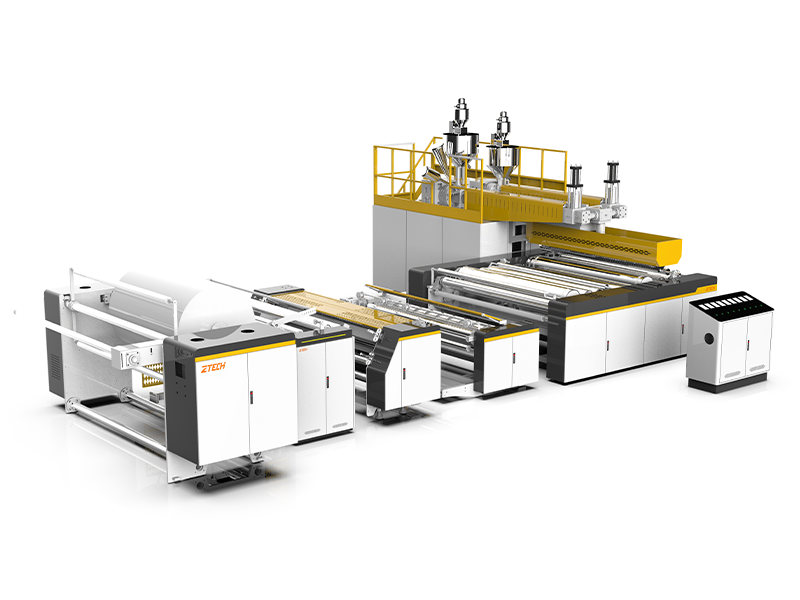

2-layer air bubble film machine
Precision and Quality Control in an Advanced Air Bubble Film Machine
Increased efficiency should not come at the expense of quality. On the contrary, truly efficient production stems from precise control of every step. A high-performance air bubble film machine, through its complex mechanical structure and sensor network, ensures the fullness of each bubble and the uniformity of each roll of film.
The quality of bubble formation directly determines its cushioning and protective performance. The core component of the air bubble film machine—the forming roller—employs precise vacuum adsorption technology. When molten PE film covers the surface of the forming roller, the negative pressure generated by the vacuum pump draws the film into the pores of the roller surface, thus forming regular bubbles.
Modern automatic bubble film machines can monitor vacuum pressure in real time and automatically fine-tune the flow rate of the cooling water system according to the ambient temperature. This precise temperature and pressure control system ensures that even at high speeds, the bubbles produced by the air bubble film machine will not collapse, leak, or have uneven thickness.
For multi-layer composite or co-extruded products, precision is particularly critical. For example, when producing 3-layer, 5-layer, or even 7-layer bubble film, the automatic bubble film machine uses a T-die design, which can precisely separate the melt from different extruders.
This multi-layer co-extrusion technology in the air bubble film machine allows for the addition of specific functional materials to different layers. For example, adding barrier materials to the intermediate layer can produce nylon co-extruded bubble film with extremely strong air-retention properties. This high-precision material distribution capability enables automatic bubble film machines to meet the near-stringent packaging quality requirements of high-end electronic products and precision instruments.
Furthermore, the automated tension control system is also key to maintaining the high quality of air bubble film machines. Through closed-loop feedback control, the machine can adjust the torque of the traction motor in real time according to changes in the winding diameter, preventing the film from deforming during stretching. This extreme control over physical parameters makes automatic bubble film machines not only fast but also consistently high-quality, thereby reducing rework costs due to substandard quality and indirectly improving overall production efficiency.
How an Automatic Bubble Film Machine Minimizes Waste
An optimized automatic bubble film machine embodies the concept of high-end resource utilization in every aspect.
Firstly, there is the automatic recycling of edge material. During the production process of air bubble film machines, to ensure neat roll edges, excess edge material usually needs to be trimmed. The traditional approach is to collect it, crush it, and then reuse it in production. Fully automated automatic bubble film machines often integrate an online edge material recycling system. This system directly draws the cut edge material into a crushing device via a fan and immediately returns it to the extruder's feed inlet for recycling. This online recycling mode achieves almost 100% utilization of raw materials, significantly reducing material costs during long-term operation of the air bubble film machine.
Improved energy efficiency is a major selling point of modern automatic bubble film machines. Advanced extrusion systems utilize high-efficiency, energy-saving heating coils and variable frequency motors, reducing overall energy consumption per ton of product by more than 15% compared to older models.
The intelligent control system of the air bubble film machine also features a standby mode and segmented heating functions. It automatically reduces energy consumption when the equipment is not in production, and dynamically allocates power according to the actual load during production. For large-scale production enterprises, the resulting electricity cost savings are considerable.
Reducing machine errors and losses caused by human operation is also a core advantage of automatic bubble film machines. Due to the highly automated operation process of air bubble film machines, the reliance on operator skills is reduced.
Automated alarm and diagnostic functions can alert employees in real time to raw material shortages and temperature control anomalies. This predictive maintenance mechanism prevents entire rolls of product from being scrapped due to undetected minor faults. With the help of an automatic bubble film machine, companies can achieve more precise bill of materials control, ensuring that every raw material is transformed into valuable product.

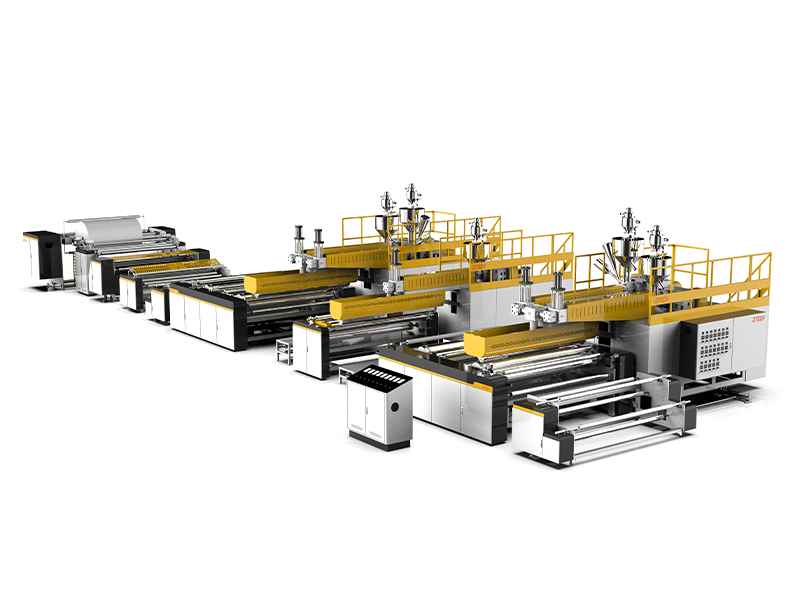

7-layer air bubble film machine
Choosing the Right Air Bubble Film Machine
Faced with a wide array of equipment options on the market, choosing the air bubble film machine best suited to a company's needs is a crucial task for managers. The right choice not only affects current production capacity but also impacts future business expansion.
The first consideration is the layer structure. A basic 2-layer automatic bubble film machine is suitable for producing ordinary bubble wrap. However, if you need to produce 3-layer bubble wrap with a protective surface film, or if you need to laminate materials such as aluminum foil, kraft paper, or EPE foam online, you will need to choose a 5-layer or 7-layer air bubble film machine. This multi-functional capability allows automatic bubble film machines to produce high-value-added products such as thermal insulation materials and air-cushioned mailbags, significantly expanding the market reach of businesses.
Secondly, technical specifications such as width and extrusion volume are also crucial. Large enterprises typically prefer automatic bubble film machines with widths of 2500mm or 3000mm because wider models can cover a larger surface area in the same amount of time, resulting in a higher output ratio. Simultaneously, the extrusion volume must be matched with the molding speed to ensure that the air bubble film machine can still provide a sufficient melt supply even at high speeds.
Furthermore, specialized models for specific applications are worth considering. For example, the ABA co-extrusion automatic bubble film machine employs a unique 3-layer co-extrusion structure, allowing for a higher proportion of recycled materials or reinforcing materials in the middle layers, ensuring product toughness while effectively reducing costs. For goods requiring long-distance sea transport or long-term storage, air bubble film machines equipped with nylon co-extrusion capabilities are the best choice, producing films with excellent barrier properties that can keep bubbles airtight for months.
Finally, the durability of the equipment and after-sales support are crucial. A reliable automatic bubble film machine should employ high-quality hardened gear reducers, alloy steel screws, and internationally renowned electrical components. Choosing a supplier with a good reputation in the industry ensures a longer service life and timely spare parts supply for your air bubble film machine.
Conclusion
From the mechanical advantages of high-speed output to the quality assurance of precise control, and the resource management that turns waste into treasure, the fully automatic air bubble film machine provides modern packaging manufacturers with a complete efficiency solution.
In this field, Ztech has become a leader in the global bubble film machinery industry thanks to its deep technological foundation and profound understanding of customer needs. By introducing Ztech's automatic bubble film machine, companies can further enhance their production capacity and achieve long-term stable development.
