Against the backdrop of the rapid development of the modern packaging industry, the demand for cushioning packaging materials continues to grow, with bubble sheet becoming a mainstream choice due to its excellent shockproof performance. The core equipment for producing this type of material is the bubble sheet machine.
This equipment is widely used in protective packaging for electronic products, logistics and transportation, precision instruments, and other fields, and is one of the important production tools for packaging manufacturers today. With the increasing demand for automation and efficient production, modern bubble sheet machines are continuously upgrading towards higher speed, higher stability, and greater intelligence.

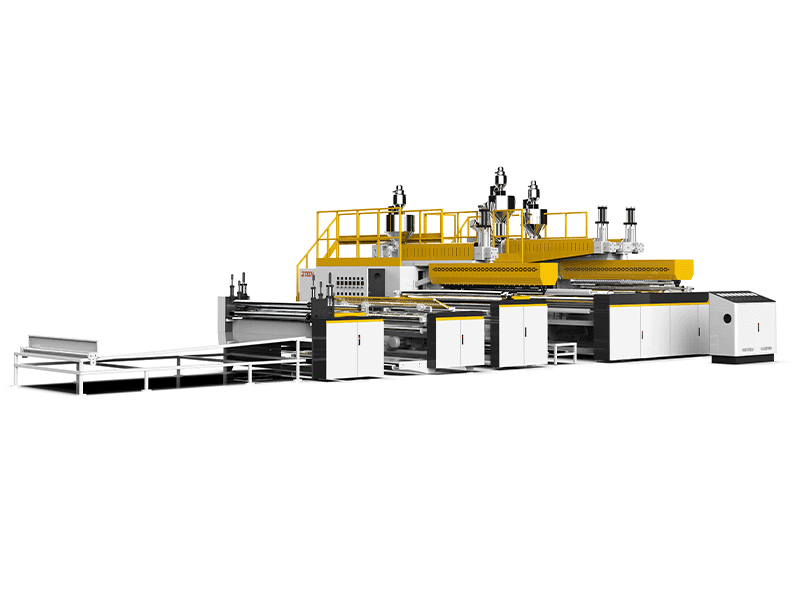

Understanding the Working Principle of an Air Bubble Sheet Machine
To understand how a high-performance air bubble sheet machine operates, it's essential to first understand the physical structure of its output.
Raw Material Melting and Extrusion
The production process begins with raw material preparation. Air bubble sheet machines are typically equipped with multiple high-efficiency single-screw extruders. The raw material undergoes precise heating and screw shearing within the barrel, transforming it into a uniform molten state. High-quality bubble sheet machines maintain extremely strict temperature control at this stage to ensure stable melt pressure, which is fundamental to guaranteeing uniform sheet thickness.
T-Die Layering and Composite
The molten polymer enters a precisely designed T-die. Here, the material is distributed into three different flow channels. High-performance air bubble sheet machines enable multi-layer co-extrusion technology, allowing for perfect bonding between the intermediate layer and the top and bottom layers.
Vacuum Forming Process
This is the most technically demanding step in the bubble sheet machine process. The melt for the intermediate layer flows to a vacuum roller with specific cavities. Under vacuum suction, the smooth melt is drawn into the roller's cavities, forming a uniformly arranged bubble structure. Meanwhile, the lower and upper layers are bonded to the bubble-filled intermediate layer in real time under the action of specific pressure rollers.
This process ensures that the sheets produced by the air bubble sheet machine are not simply glued together, but rather molecularly bonded in a molten state, resulting in extremely high peel strength.
Cooling and Shaping
The three-layer composite sheet needs to be rapidly cooled to lock in its shape. The bubble sheet machine is equipped with a cooling system consisting of multiple sets of high-precision cooling rollers. The cooling speed and uniformity directly affect the flatness and internal stress distribution of the sheet.
Edge Trimming, Traction, and Fixed-Length Cutting
Finally, the continuously produced sheets are trimmed to remove uneven edges by an edge trimming device and then smoothly guided to the cutting machine by a traction machine. Advanced air bubble sheet machines employ a PLC control system, enabling high-precision fixed-length transverse cutting or direct winding of the finished product.
Essential Features of a High-Performance Air Bubble Sheet Machine
When selecting an air bubble sheet machine, the equipment's technical specifications directly determine the product's market competitiveness. A high-quality bubble sheet machine must possess the following core characteristics:
High-Precision PLC Automated Control System
Modern air bubble sheet machines have completely moved beyond manual adjustment. The entire machine is monitored by a central PLC system. Operators simply input parameters on a touchscreen, and the system automatically adjusts the screw speed, heating temperature, and traction speed. This high degree of automation ensures consistent product quality during continuous 24-hour operation.
Energy-Saving and Efficient Extrusion System
Energy consumption is one of the biggest costs for B2B companies. Leading air bubble sheet machines utilize high-efficiency, energy-saving motors and optimized barrel heating systems. Through improved screw design, the bubble sheet machine achieves higher output with lower energy consumption, extruding hundreds of kilograms per hour, significantly reducing the unit production cost.
Superior Vacuum Forming Roller Design
The high-quality rollers are made of special alloy steel and undergo precise dynamic balancing. The bubble hole design is based on fluid dynamics simulation, ensuring full and uniform bubble shapes. Furthermore, the complex internal cooling water system design is crucial for ensuring the bubble sheet machine's high-speed and stable operation. Modular and Versatile: A superior bubble sheet machine is designed with future scalability in mind. For example, an online lamination system can be easily added, giving the produced sheets anti-slip, sound-insulating, or decorative functions. This versatility allows a single air bubble sheet machine to produce products suitable for multiple different industries.
Rugged and Durable Mechanical Structure
As a heavy-duty industrial piece of equipment, the stability of the frame and the wear resistance of the components are crucial for bubble sheet machines. A frame welded from high-strength steel and subjected to aging treatment effectively eliminates vibrations during high-speed operation, thereby extending the lifespan of the air bubble sheet machine and reducing downtime for maintenance.
Why Invest in a Bubble Sheet Machine for Business
Investing in an air bubble sheet machine is a strategic decision with far-reaching implications for packaging manufacturers and industrial material suppliers.
Reduced Logistics Costs
PP bubble sheets produced using an air bubble sheet machine are more than 50% lighter than solid sheets of the same thickness, while maintaining the same physical properties. This means customers can significantly reduce fuel consumption and logistics costs during transportation. Promoting materials produced by bubble sheet machines can significantly enhance a company's market premium.
Excellent Cost-Effectiveness
While the initial investment in an air bubble sheet machine requires some capital, its long-term returns are substantial. Due to the unique structure of the bubble, the amount of raw materials needed to produce the same volume of sheet is greatly reduced. In an environment of fluctuating raw material prices, companies with efficient bubble sheet machines can better control costs and maintain profit margins.
Meeting Environmental Demands
Current air bubble sheet machines primarily process PP materials. PP is a 100% recyclable and environmentally friendly material, complying with EU and other global policies on plastic reduction and the circular economy. Recyclable boxes produced by bubble sheet machines can replace traditional disposable cardboard boxes and heavy wooden crates, which is not only an environmental benefit but also a symbol of corporate social responsibility.
Expanding Product Lines
Owning an advanced air bubble sheet machine means gaining access to the automotive interior, high-end logistics, and aerospace packaging sectors. These industries have extremely high requirements for supplier equipment levels and product consistency. Customized products produced by bubble sheet machines can help companies avoid price wars in low-end markets and shift towards high-end markets.
Improving Production Efficiency
In trade, delivery time is often the decisive factor in order closing. Modern air bubble sheet machines boast extremely high production rates. Once the equipment is debugged, it can operate in 24/7 production mode. Compared to traditional molding processes, the continuous extrusion process of bubble sheet machines ensures that large-volume orders are completed with high quality and quantity in a very short time.
Key Applications of a Modern Bubble Sheet Machine
Sheets produced by air bubble sheet machines, due to their unique physical structure, exhibit extremely wide applications across various industries.
Logistics and Packaging Industry
This is the core application area of bubble sheet machines.
Reusable Tote Boxes: Sheets produced using air bubble sheet machines can be processed into foldable tote boxes, widely used for the turnover of electronics, precision instruments, and automotive parts.
Pallet Pads: This type of sheet has excellent compression resistance, making it an ideal pallet laminate that prevents damage to goods during transportation.
Inner Liners: Inside packaging boxes, materials produced by bubble sheet machines can serve as support and cushioning dividers.
Automotive Industry
Automakers are constantly seeking ways to reduce vehicle weight.
Trunk Floor Pads: Many car models use PP bubble sheets produced by air bubble sheet machines for their trunk floor and spare tire cover.
Interior Trim Panels: Surface-coated sheets can be used for side panels and headliners, reducing weight while providing good sound insulation.
Construction and Real Estate
Air bubble sheet machines also have significant applications in the construction industry.
Floor Protection Panels: During interior finishing, durable bubble sheets protect expensive marble or floors from mechanical damage.
Waterproofing and Insulation Layers: Due to their sealed bubble structure, sheets produced by bubble sheet machines offer some insulation properties and can be used for wall linings.
Luggage and Everyday Products
Many high-end suitcase linings and support components, or even student folders, use bubble sheet machines as their core material. This ensures the product will not deform over long-term use.
Conclusion
Air bubble sheet machines are far more than just tools for producing ordinary bubble sheets; they represent the pinnacle of modern industry's pursuit of material efficiency and performance. From complex vacuum forming principles to highly efficient PLC automated control, bubble sheet machines are redefining the standards for lightweight sheet metal production.
Ztech is a leading company specializing in the research and development and manufacturing of air bubble sheet machines. As an industry leader, Ztech's bubble sheet machine series not only boasts internationally leading extrusion precision and production efficiency but also provides highly customized solutions based on customers' specific needs.
