In the modern industrial packaging sector, with increasingly complex product structures and ever-increasing logistics and transportation frequencies, enterprises are placing higher demands on the performance and production efficiency of packaging materials. This is especially true in the transportation of automotive parts, electronic products, and industrial equipment, where materials with excellent cushioning properties are required, along with production equipment that offers stable and efficient operation. Against this backdrop, high-speed bubble sheet machines have gradually become crucial equipment for manufacturing high-performance cushioning materials.
Advantages of a High-Speed Bubble Sheet Machine
A high-speed bubble sheet machine is more than just fast; it's a culmination of precision mechanical engineering, fluid dynamics, and automated control technology.
Superior Extrusion System
The extrusion system is the heart of the entire bubble sheet machine. For PP (polypropylene) material, temperature control and shear stress during the melting process directly determine the mechanical properties of the final sheet.
High-Efficiency Screw Design: High-end high-speed bubble sheet machines utilize high-efficiency screws with a large length-to-diameter ratio. Through a special compounding element design, it ensures that the PP raw material is fully plasticized when passing through the extruder at high speed. Whether using virgin feedstock or a high proportion of recycled feedstock, the extrusion system provides stable melt pressure, preventing crystallization points or uneven melting.
Precise Temperature Control: Extruder barrels are typically equipped with multiple heating zones and cooling fans. In high-speed production mode, the high-speed rotation of the screw generates a large amount of shear heat. Advanced high-speed bubble sheet machines can adjust the temperature in real time through an intelligent temperature control system, keeping melt temperature fluctuations within ±1°C. This extreme stability is a prerequisite for producing high-quality protective sheets, ensuring that every inch of bubble sheet produced has a uniform wall thickness.
Forming Precision
The ability to form and solidify bubbles in an extremely short time when the melt leaves the die and enters the forming rollers is the watershed moment for evaluating the performance of a high-speed bubble sheet machine.
High-Precision Forming Rollers: The forming rollers of a bubble sheet machine have precisely distributed honeycomb-like or circular bubble holes on their surface. At high speeds, centrifugal force and thermal inertia can interfere with the forming process. Ztech's forming system, through optimized vacuum negative pressure distribution technology, ensures that the melt is uniformly adsorbed the moment it enters the rollers. Even when the production line speed is doubled, the bubble shape remains highly consistent, without collapse or deformation.

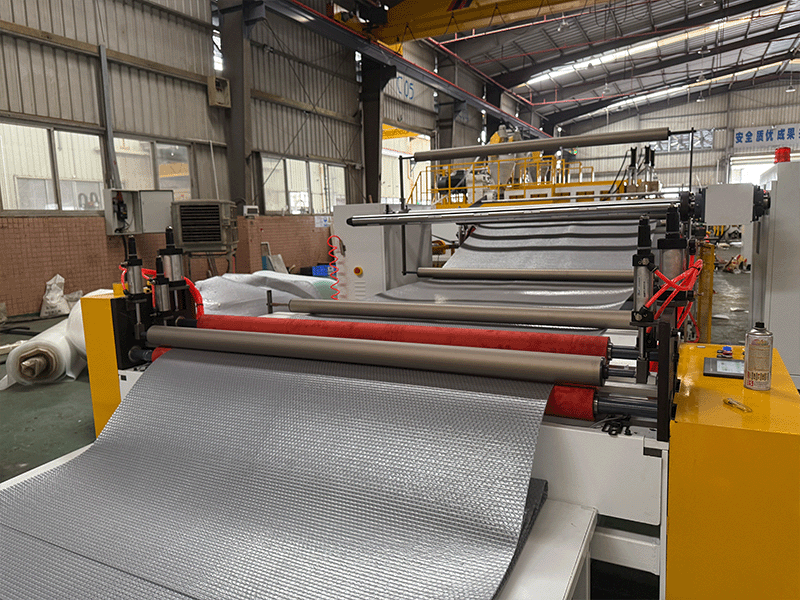

Cooling and Lamination: Bubble sheets are typically composed of a surface layer, a core layer, and a bottom layer. High-speed bubble sheet machines must ensure that the adhesion strength between each layer reaches industrial-grade standards during high-speed lamination. Through precise, synchronized roller gap adjustment and a multi-roller cooling system, the sheet material is fully shaped upon exiting the rollers, possessing excellent compressive and impact resistance.
Fully Automated Process
Simply increasing extrusion speed without subsequent processes can lead to significant waste and production bottlenecks. Therefore, full automation is an indispensable component of high-speed bubble sheet machines.
Automatic Roll Changing System: Traditional equipment requires manual intervention or machine shutdown for roll changing after full winding, which is unacceptable on high-speed production lines. Modern bubble sheet machines are equipped with dual- or multi-position automatic winding machines, enabling cutting and roll changing without stopping or slowing down the machine, greatly improving equipment uptime.
Online Cutting and Edge Recycling: To support high-speed output, the online slitting system employs high-precision servo control, ensuring clean sheet edges and minimal dimensional tolerances. Simultaneously, the accompanying online edge crushing and recycling system directly returns cut-off scraps to the extruder. This is not only an environmental requirement but also a key to reducing material costs for high-speed bubble sheet machines.
Key Applications of the Bubble Sheet Machine
With its lightweight, waterproof, chemical-resistant, and excellent cushioning properties, PP bubble sheets produced by the bubble sheet machine have penetrated multiple high-end manufacturing sectors.
Automotive Industry
In the trend of automotive lightweighting, every gram of weight reduction translates to increased driving range. Sheets produced by high-speed bubble sheet machines play a crucial role in automotive interiors and structural components.
Spare Tire Covers and Trunk Floors: PP bubble sheets possess extremely high flatness and load-bearing capacity. By laminating them with non-woven fabric or carpet layers, they can become ideal structural components for automotive trunks.
Interior Linings: This type of sheet not only provides excellent acoustic insulation but also absorbs energy upon impact, improving passenger safety.
Logistics and Transportation
Sheets produced by the bubble sheet machine are the core material for manufacturing reusable crates.
Sleeve Packs: PP honeycomb panels are cut, bent, and formed into side panels, which, combined with plastic base trays and top covers, form a robust reusable packaging system. Compared to cardboard boxes, it is more durable; compared to wooden crates, it is lighter and requires no fumigation.
Inner Linings: In the transport of precision parts, custom-made dividers and clips made from sheets produced by bubble sheet machines effectively prevent parts from bumping against each other.
Electronics and Industry
Anti-static Packaging: By adding anti-static masterbatch to the raw materials, high-speed bubble sheet machines can produce anti-static bubble sheets specifically designed for the protection of electronic components, preventing electrostatic discharge.
Construction and Insulation: Because bubble sheets are filled with air layers, they have natural heat and sound insulation properties, and are often used for building protection, temporary fencing, or floor protection mats.
Essential Features to Choose a Reliable Bubble Sheet Machine
Faced with a wide variety of suppliers in the market, companies should focus on the following technical specifications when purchasing bubble sheet machines to ensure the long-term stability of the equipment.
Multi-layer Composite Technology
A competitive high-speed bubble sheet machine should have flexible composite capabilities.
3 Layer Sheet: Composed of a top layer, a bubble core layer, and a bottom layer, suitable for most standard packaging.
5 Layers: If customers require surface lamination with anti-slip film, non-woven fabric, aluminum foil, or reinforcing layers, the bubble sheet machine needs to be equipped with additional unwinding and laminating units. Choosing equipment that supports modular upgrades allows businesses to better cope with future order changes.
Energy-Saving Design
While high-speed bubble sheet machines have high output, energy consumption is a significant expense.
Infrared Heating and Insulation: Insulation of the extruder barrel and the use of high-efficiency infrared heaters significantly reduce heat loss.
Variable Frequency Drive: The main motor and fan utilize high-performance variable frequency control, enabling precise synchronous operation and automatic energy consumption adjustment based on actual load, saving electricity costs.
Ease of Operation
The ease of use of the bubble sheet machine directly impacts production efficiency.
Centralized Control: All parameters should be integrated on the PLC touchscreen. Operators only need to call the process recipe, and the high-speed bubble sheet machine will automatically enter a stable production state.
Remote Diagnostics: Reputable suppliers will provide remote diagnostic modules. If equipment malfunctions, technicians can perform online diagnostics via the network, reducing downtime.
Maximizing ROI with High Speed Bubble Sheet Machine Efficiency
Investing in a high-speed bubble sheet machine is a significant capital expenditure, but its return on investment typically far exceeds expectations.
Reducing Scrap Waste
Raw materials account for a large portion of production costs. A well-designed high-speed bubble sheet machine, equipped with a high-precision die head and a servo-controlled online edge-cutting system, can minimize edge waste. Furthermore, the consistent quality of the produced sheets significantly reduces the defect rate, directly translating into profits.
Lowering Labor Costs
In today's environment of rising labor costs, the high degree of automation in high-speed bubble sheet machines means less human intervention. A skilled operator, along with one or two support staff, can manage an entire complex bubble sheet machine production line. From material input to finished sheet production or winding, end-to-end automation significantly reduces labor costs per ton of output.
Faster Delivery Cycles
In a fast-paced market environment, delivery speed is often key to winning orders. Companies with high-speed bubble sheet machines can complete large-scale orders in a very short time. This efficient turnaround time allows them to accept more urgent orders and expand market share. At the same time, high-output bubble sheet machines mean lower unit depreciation costs, giving companies a competitive edge in price competition.
Conclusion
High-speed bubble sheet machines are not only tools for producing packaging materials, but also powerful tools for packaging manufacturers to achieve transformation, upgrading, and improved profitability. In the face of an increasingly demanding market environment, choosing a machine that excels in extrusion efficiency, molding accuracy, and automation is the cornerstone of a company's success.
As a leading manufacturer, Ztech is committed to providing top-tier bubble sheet machine solutions to customers worldwide. Our high-speed bubble sheet machine series, with its innovative design, stable performance, and excellent compatibility with various PP materials, has helped countless companies establish efficient production facilities.
